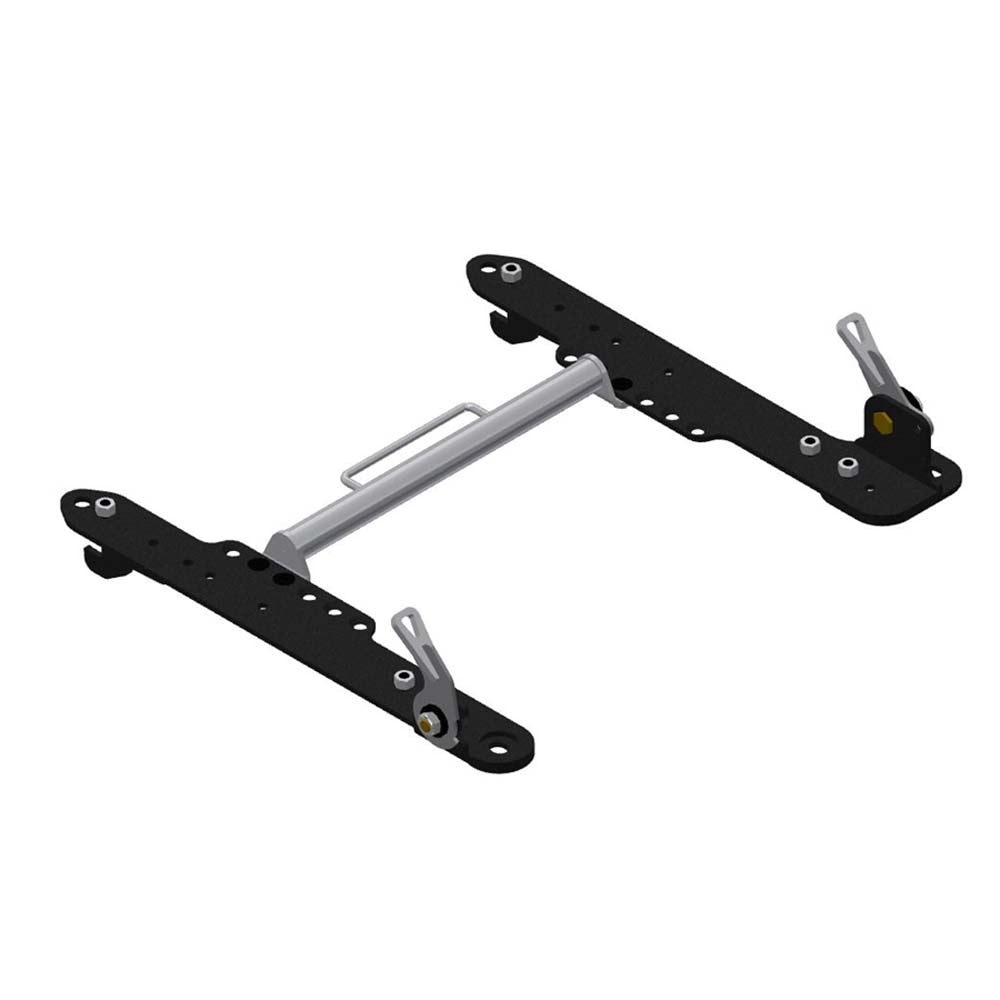

Brey Krause R-9174 Passenger Seat Adapter - Chevrolet Camaro (Fifth Gen)
The Brey Krause R-9174 is an aftermarket race-seat mounting solution for all Fifth-Generation Chevrolet Camaros (2010-2015). The cleanly-designed floor pan adapters bolt directly to the existing seat-mounting locations, and require no chassis modifications. Once installed, Sparco or Recaro aftermarket sliders can be attached for fore-aft adjustments, allowing for any of the Brey Krause R-906x series (with Recaro slider) or R-907x series (with Sparco slider) seat-specific side-mount adapters to be used. The integrated sub-bar (available separately) is adjustable for use with 5 or 6-point harness systems. The design allows for the stock 3-point belts to stay in place, while still providing inboard/outboard lap belt mounting locations.
Note: Brey Krause Seat brackets are required for complete seat installation and must be purchased separately - see Brey Krause R-906X series side mount brackets.
Note: Brey Krause Seat brackets are required for complete seat installation and must be purchased separately - see Brey Krause R-906X series side mount brackets.
.%20The%20cleanly-designed%20floor%20pan%20adapters%20bolt%20directly%20to%20the%20existing%20se...){kind=link}
| Part Number: | BR9174 |
| Manufacturer: | R-9174 |
- Material: Aircraft-Grade Aluminum; Type 304 Stainless Steel (sub-bar)
- Finish: Black Gloss Powder Coat; Satin finish
- Weight: 7.8 lbs.
- Models: Fits all Fifth Gen Camaro
- Installation: Attaches to driver side. Seat specific side-mount brackets not included (See list below). All other necessary hardware included.
Compatible Brey Krause Side Mounts:
With Aftermarket Sliders:
- R-9060 - Sparco Evo, Momo Super Cup
- R-9061 - Sparco Evo 2, Evo 2 Plus, Corsa, OMP HTE-XL
- R-9062 - Recaro Pole Position
- R-9066 - Recaro SPG XL
- R-9067 - Recaro SPA, SPG, Pro Racer HANS
- R-9065 - Cobra Nogaro
Direct Mount (No Sliders):
- R-9071 - Sparco Evo, Pro 2000
- R-9072 - Sparco Evo, Pro 2000
- R-9073 - Sparco Evo 2
- R-9074 - Sparco Evo 2
- R-9761 - Sparco Evo 2 Plus
- R-9762 - Sparco Evo 2 Plus
- R-9075 - Sparco Evo 2 US
- R-9076 - Sparco Evo 2 US
- R-9075 - Recaro Pole Position, SPG XL
- R-9076 - Recaro Pole Position, SPG XL
- R-9755 - Recaro SPA, SPG, Pro HANS
- R-9756 - Recaro SPA, SPG, Pro HANS
- R-9751 - OMP HTE
- R-9752 - OMP HTE
- R-9775 - Cobra Nogaro
